- Five color temperatures in each fixture (2700K/1285 Lumens, 3000K/1361 Lumens, 3500K/1421 Lumens, 4000K/1444 Lumens, 5000K/1445 Lumens)
- No housing required and includes junction box with class 2 driver
- Junction box includes color temperature switch, IC Air-Tight Rated
- 120-277VAC; 0-10V dimming
- Haze Reflector / Matte Powder White Flange

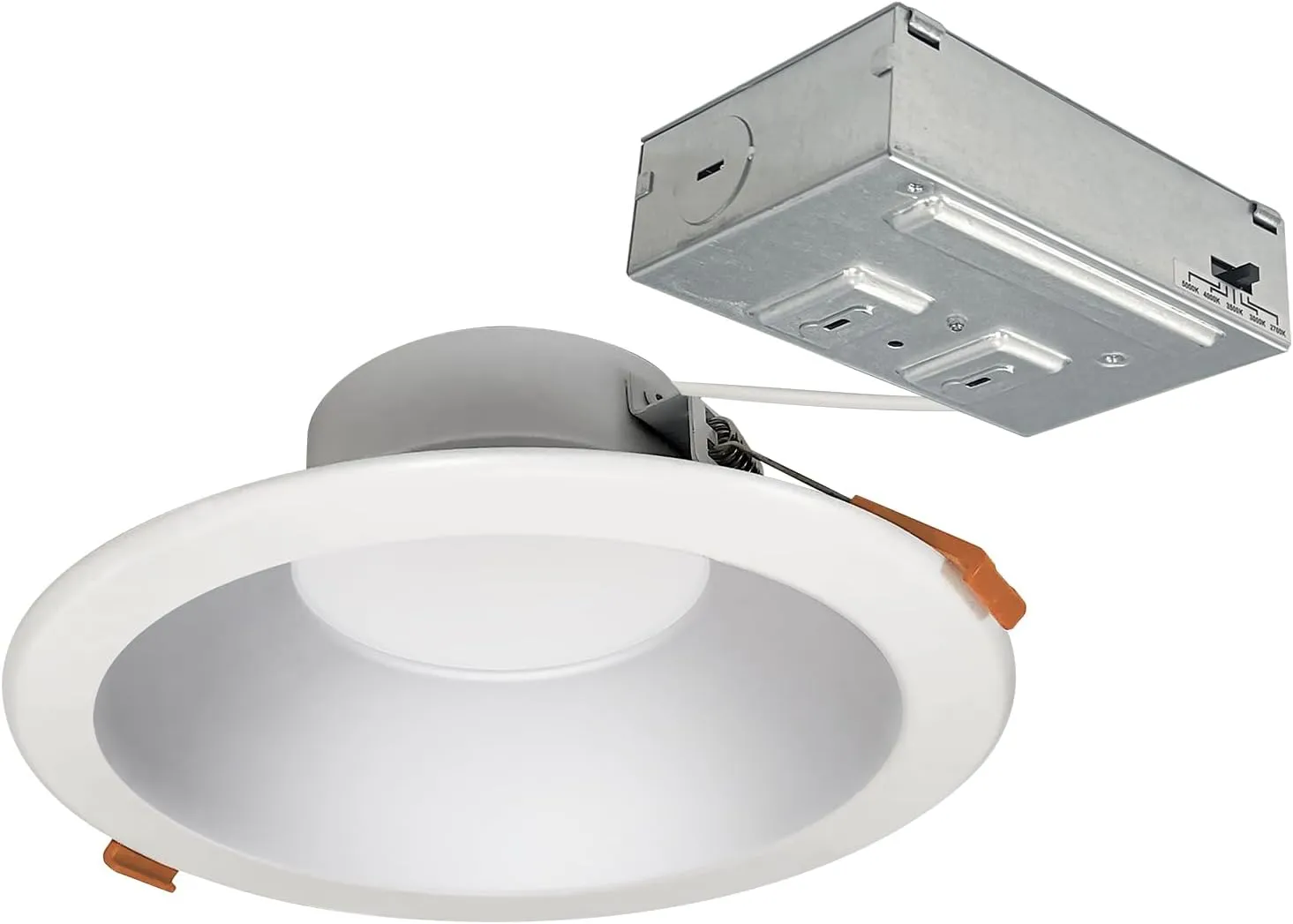

Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling. No housing required! Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking. Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" knockouts, two keyhole slots and snap on cover. Maximum of 6 No. 12 AWG or Maximum of 8 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7-1/2" and Junction box wire length: 10-1/2"] No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/8". New construction frame-in or plate are available (ordered separately), not required. : “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
- Product Dimensions : 7.38 x 4.5 x 2.75 inches; 2 Pounds
- Date First Available : March 11, 2024
- Manufacturer : Nora Lighting
- Country of Origin : China
